Product Description

Basic Information

Model NO.
WJ97
Readout Mode
Contact
Signal Output
Complementary Push-pull Output
Input Type
5V Differential Signal Input
Installation
Standard DIN35 Rail
Power Supply
8~32VDC
Dimensions
120mm x 70mm x 43mm
Origin
Guangdong, China

Product Description

4-channel Grating Ruler Magnetic Grating Ruler Encoder 5MHz High-speed Differential Signal to Modbus TCP Network Module

  • Grating ruler and magnetic grating ruler decoded to standard Modbus TCP protocol.
  • 5V differential signal input directly with 4x counting.
  • Module provides 5V power supply output for the grating ruler.
  • High speed counting frequency up to 5MHz.
  • Supports 4 grating rulers simultaneously with forward/reverse rotation recognition.
  • Webpage data viewing - no extra software needed.
  • Automatic power-off saving for encoder count values.
  • Isolated DI input and network communication interface.
  • Standard DIN35 rail installation for easy wiring.

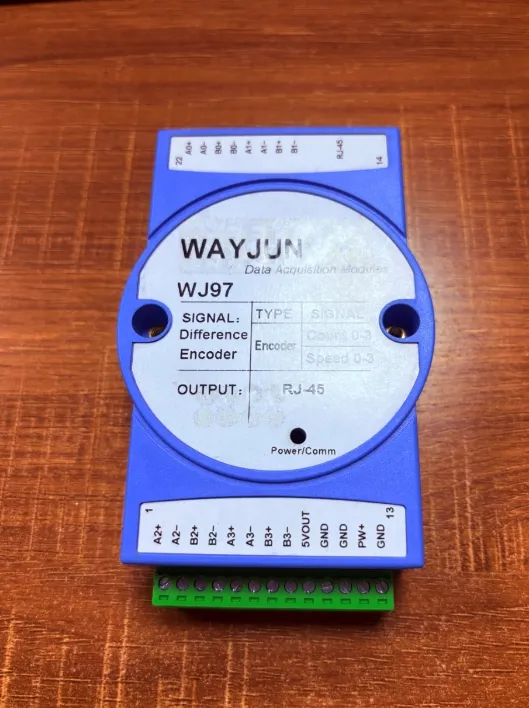

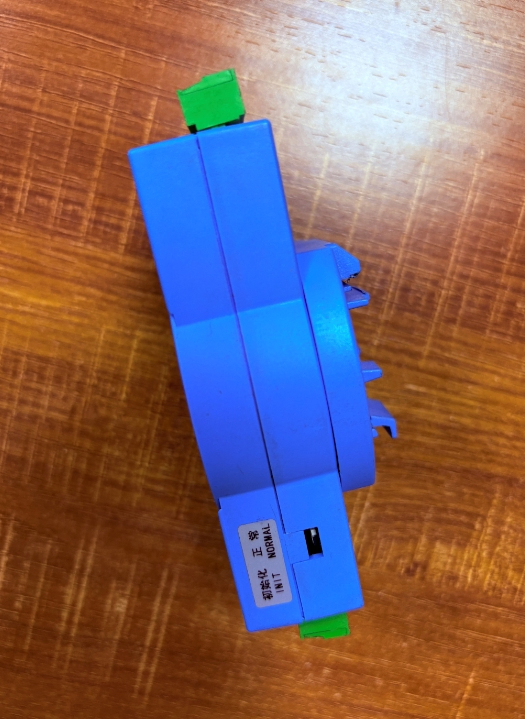

WJ97 Product View 1

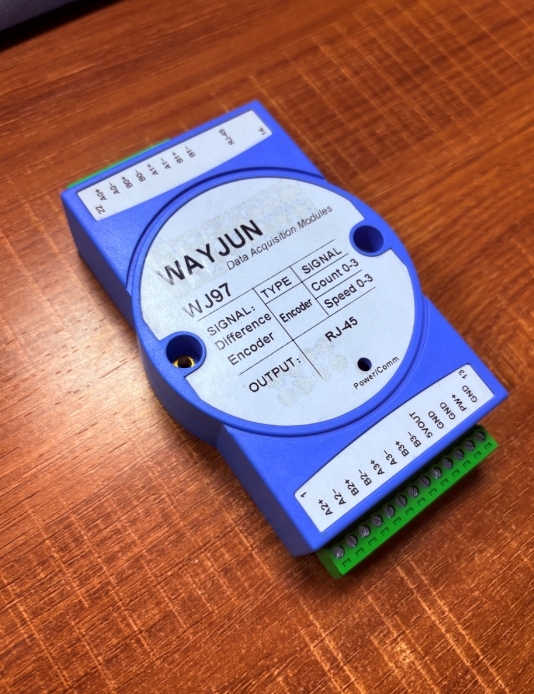

WJ97 Product View 2

General Parameters

Frequency Range
0-5MHz
Counting Range
-2147483647 ~ +2147483647
Communication
MQTT, Modbus TCP, TCP/UDP
Interface
RJ-45 with Isolation Transformer
Power Consumption
Less than 3W
Temp Range
-45 to +80℃

Typical Applications

  • Grating ruler & magnetic grating ruler length measurement.
  • Flow meter pulse counting or flow measurement.
  • CNC machine position data measurement.
  • Remote encoder signal transmission to industrial computers.
  • Intelligent factory and Industrial Internet of Things (IIoT).
  • Replacing PLC to directly transmit data to control centers.
Product Selection Communication Interface
WJ97-RJ45 Output as RJ-45 network interface, supports Modbus TCP/MQTT
Module Capability

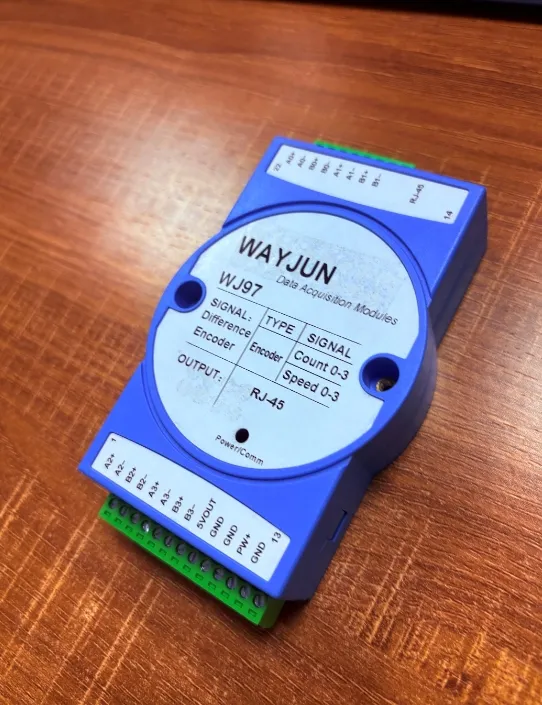

Detail View 1

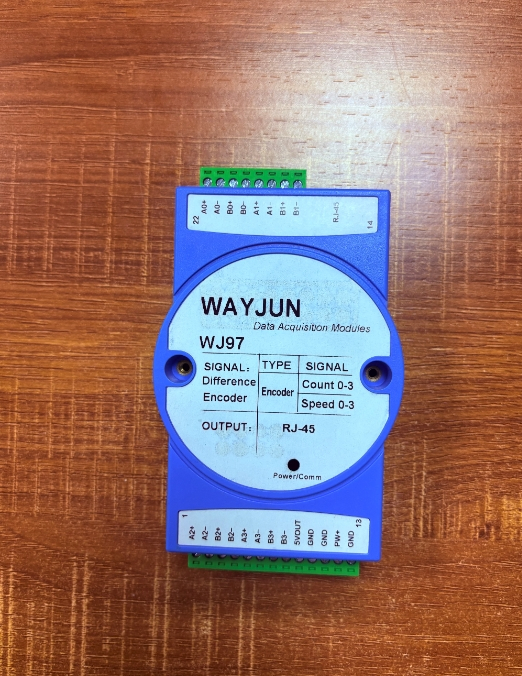

Detail View 2
Frequently Asked Questions
What is the maximum signal frequency the WJ97 can handle?
The module supports high-speed counting with a frequency range of up to 5MHz for all channels simultaneously.
Can the module power the connected grating rulers?
Yes, the WJ97 module can output a 5V power supply specifically to power the grating rulers.
Does the device lose its count data during a power failure?
No, the encoder count value supports automatic power-off saving, ensuring data integrity when power is restored.
Which communication protocols are supported?
The module supports Modbus TCP, MQTT (for cloud services like Alibaba/Tencent/Huawei Cloud), and TCP/UDP/WebSocket protocols.
Is special software required to view the data?
No special software is required. Users can view all data and set module parameters directly through a web browser.
What is the installation method?
The WJ97 is designed for standard DIN35 rail installation, making it very convenient for centralized wiring in industrial cabinets.
